Pet Security Camera
Simon Fraser University (SFU) | CMPT 433: Embedded Programming | Spring 2025 | Taught by: Dr. Brian Fraser

Simon Fraser University (SFU) | CMPT 433: Embedded Programming | Spring 2025 | Taught by: Dr. Brian Fraser
The source code for the project can be found here.
The Pet Security Cam project explores the development of a compact, AI-powered security camera system designed to monitor and record pet activity. The primary goal is to run the system on the BeagleY-AI
board, using a mixture of C
and Python
to utilize machine learning libraries like the YOLOv8
model and OpenCV
, enable UDP
communication, and interface with additional hardware components.
The embedded hardware can detect and track a pet's real-time movement. When the pet is detected, the system keeps track of the starting frame and trims the footage into clips. The user is notified and can access the clips via their email or through a local web app with a built-in video player and clip details.
Here is the diagram of the hardware and software of the project:

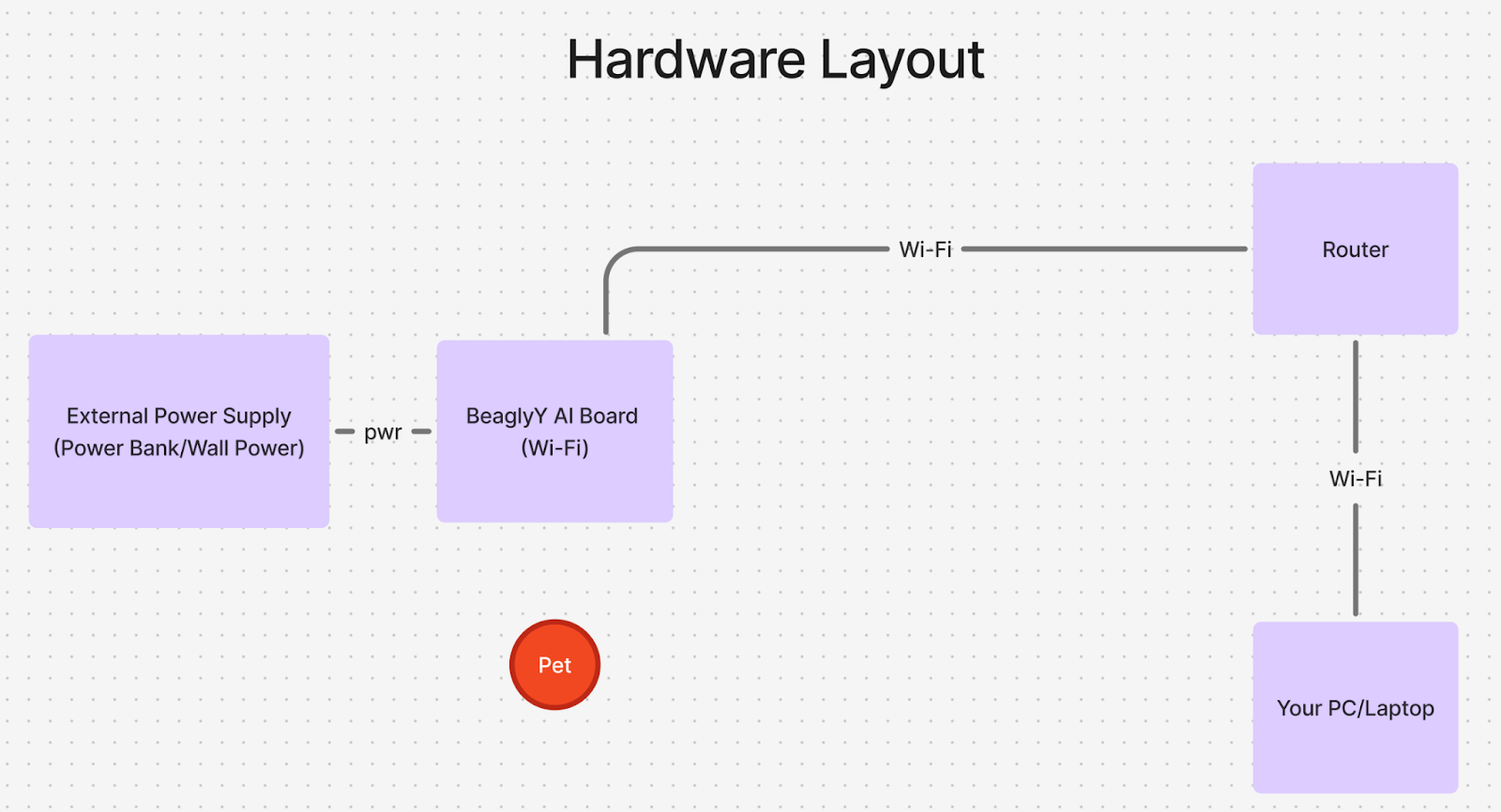

A layout of hardware components diagram

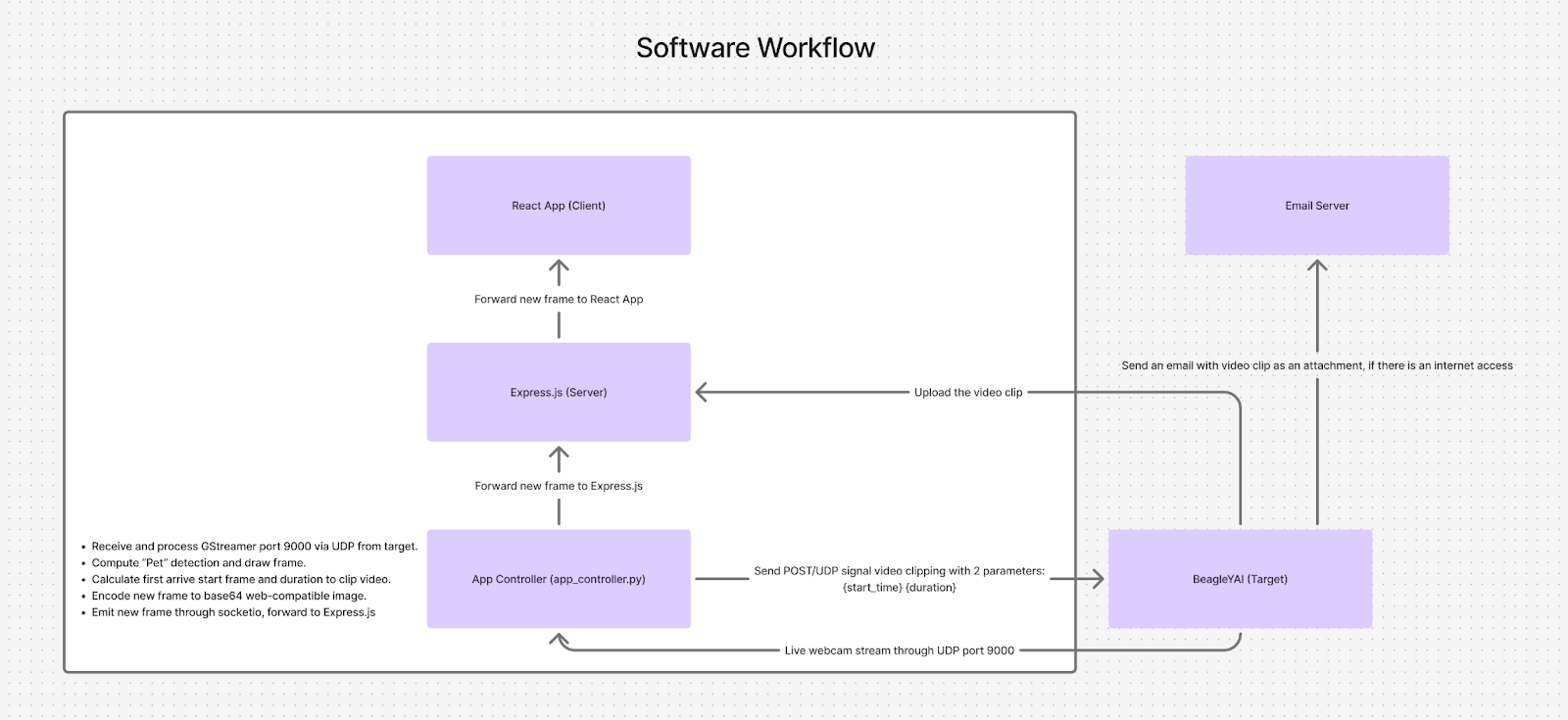

A layout of software components diagram
The core hardware aspect of our project is the camera. The camera allows users to stream live footage of the pet while recording the video throughout the session until the user chooses to terminate the running stream. It works like any mass-production security camera and has basic functionality
Our pet security camera uses the GStreamer
framework for real-time video streaming and recording. We use a custom pipeline to handle the video feeds from the camera to the UDP
network:
v4l2src → image/jpeg → jpegdec → videoconvert → jpegenc → rtpjpegpay → udpsink
Here is a breakdown of each pipeline:
By default, GStreamer
is not included when installing OpenCV
via pip install
. To enable GStreamer
support, we had to compile from source, following the instructions from the OpenCV GitHub repository. However, our MacBook Pro with an M1 chip ran into compatibility issues with Apple’s native libraries. We resolved these by rebuilding OpenCV
specifically for our project, following the steps outlined in this Blue Robotics forum post.
We used Create React App for the front end to initialize the project and separate the client from the server. This setup allows us to define specific endpoints and ports for sending and retrieving data between the host and the target device. We also integrated TailwindCSS via Content-Delivery Network (CDN) to quickly style the interface and give it a clean and modern look.
In addition, we use an Express.js
server on the backend to handle communication endpoints for the React
client and the BeagleYAI
board. This gives us finer control over how the host and target exchange data. In addition, we use WebSockets to stream the webcam feed to the client in near real-time.
We used a pre-trained YOLOv8
model by Ultralytics to detect the "pet" class. For our purposes, we grouped the following labels under "pet": Rabbit, Dog, Cat, Animal, Raccoon, and Squirrel. We also observed that the model is biased toward detecting dogs and cats, making it less reliable for identifying other pets like rabbits. The model can be fine-tuned to improve detection accuracy with more targeted training data.
This component allows the system to extract defined segments from longer recordings when pet motions are detected, creating video clips that can be shared via email notifications or viewed through the web interface. By combining GStreamer
for continuous recording and FFmpeg for precise clip extraction, the clipping function can integrate with our pet detection system through the basic workflow:
Initially, we had separate processes for clipping and emailing, and a script would run these processes, but this caused the streaming to stall, so we transitioned to using a single executable and background threads. This solved the stream stalling and still let up clip and email the footage.
Our system also supports sending the clipped video of the last 5 seconds, when the pet was seen in the frame and disappears from it, and attaching it to a chosen default email address. The camera will start sending an email with the clipped video attached to it and send it to the receiver's email address. Then the process will rinse and repeat as mentioned. The primary purpose of this functionality is to ensure the pet is always present in a short time around the room/house, so our program will consistently send the clipped video to ensure the owner that their pet is active.
The Pan-tilt
kit gives the user control over the web camera's direction. Users can control the camera movement by utilizing the Zen Hat’s joystick. The pan-tilt kit consists of 2 motors, each requiring an individual GPIO for control: GPIO 6 and 10. Regarding the code, the camera movement is done in C and was based on our assignments’ code used in the joystick and pan-tilt kit. The motor functionality utilizes PWM to precisely manipulate the duty cycle and period to control the movement and boundaries of the camera. Due to the kit’s placement with the 3D model, valuations of determined values for the motor (starting/center position, maximum and minimum) were adjusted based on preference.
The kit consists of 2 servo motors. Each servo has three wires: one for power (4.8- 6.0V), ground, and signal. The necessary 5V
was found by utilizing the 5V
port for the LED strip. GPIO pins used to control the motors were GPIO 6
and 10
, which were from the PYMNL header and the UART pins. To link the GPIO pins to the motors, 2 470Ω
resistors were utilized to prevent overvoltage, as the GPIO pins use 3.3V
while the servo motors utilize 5V
. Regarding the pin used for the grounding wire, there are multiple options on the Zen Hat for every header. Any is viable, but the grounding pin on the UART was used for simplicity and preference. To set up the
PWM, we needed to change the extlinux.conf
file so that Linux knows those pins are going to use PWM
.
The circuit diagram and physical layout of the motor connected to the BeaglyY-AI
board using the breadboard provided are shown here:

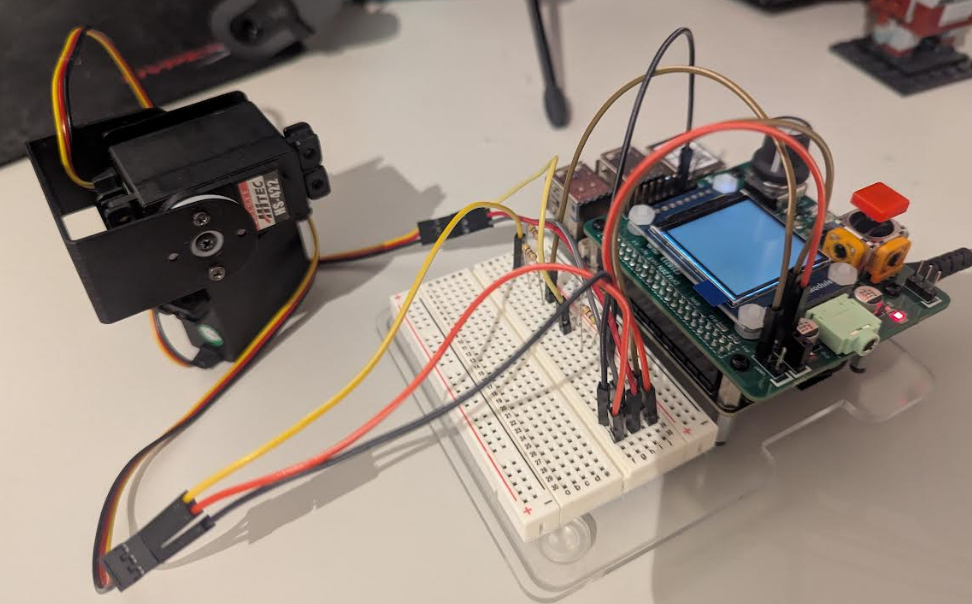

A diagram of board layout.

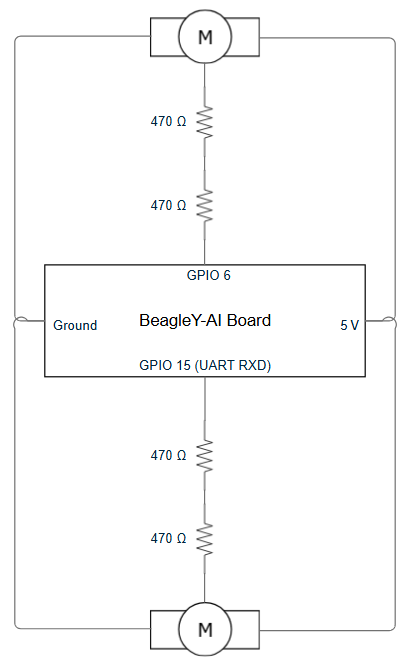

A diagram of servo circuit.
The YOLO pet detection outputs a square around the target. That square is used to calculate where the pet is in the frame. The location is normalized to the frame size, and then if the pet is outside a threshold of 0.5, it is considered not centred. When that happens, the web app sends a signal over UDP
to the board. The signal contains which axes the pet has moved on and how many degrees it has moved. The board captures that signal in its network module and moves the corresponding motor that many degrees (degrees can be positive or negative).
The system is designed to run locally within a Wi-Fi-enabled home network. However, the Wi-Fi connection must have internet access to enable automatic email delivery of video clips. The pet security camera should be placed in a corner of the room where pets frequently roam for optimal performance. Ensure the area has clear visibility and good lighting, as this helps the camera capture higher-quality video and helps AI detect pets more accurately and reliably.
